无电感锂电池升压IC（5V 230MA）PS3120A

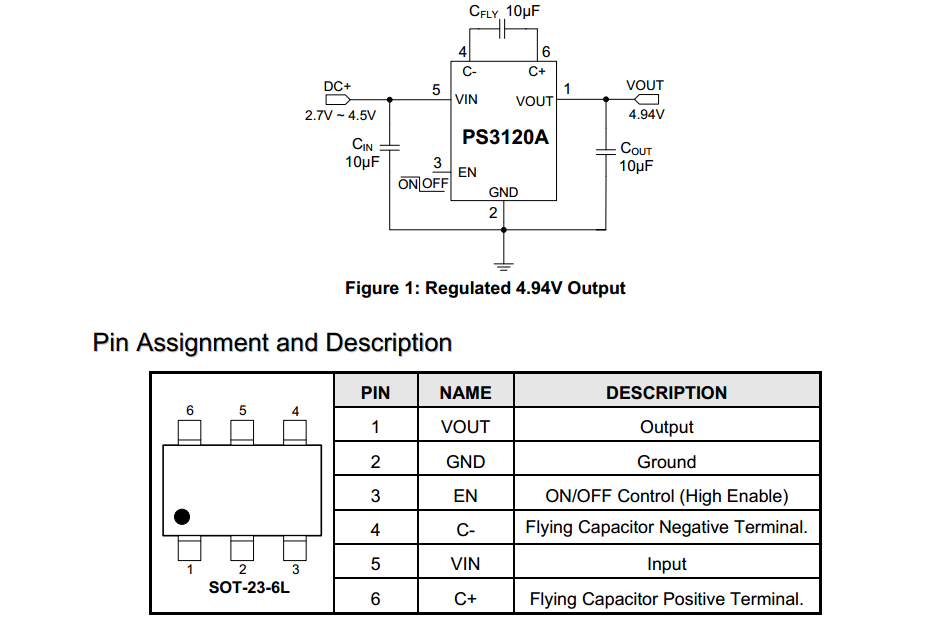

     The PS3120A is a low noise switched capacitor voltage doubler. It produces a regulated output voltage from a 2.7V to 4.5V input. Low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the PS3120A ideally suited for small, b attery-powered applications.

       The PS3120A have thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. A low current
shutdown feature disconnects the load from VIN and reduces quiescent current to <1μA.
        The PS3120A is available in the industry standard SOT-23-6L power packages.
PS3120A是不需要电感的锂电池升压IC，输出电压4.94V，输出电流最大可以做到230MA。比较适合用在小功率的电子产品中。

Fixed 4.94V±3% Output
  VIN Range: 2.7V to 4.5V
  Output Current: Up to 110mA (VIN≥3V)
Up to 230mA (VIN≥3.6V)
  Low Noise Constant Frequency (360kHz)
Operation
Shutdown Current <1μA
No Inductors
  Available in Low Profile 6-Lead SOT23
Package
